Textual colours can be specified:
Textual colours are controlled by the HTML code on a page; but image colours are determined when the image is created (or converted from eg sprite to GIF).
When choosing colours to use (for text or in GIFs), it is worth bearing in mind that what will actually appear in the visitor's browser window will be limited by their software, platform, screen mode, and dithering ability (the latter being notoriously bad on Windoze/Netscrap).
"#RrGgBb"where I've used R and r for the high and low nibbles of red, etc;
If you're used to specifying colours in this way, you should have no difficulty with this notation.
However, the following tables are provided to indicate the colour codes for the colours you will be familiar with on Acorn machines.
Note that there is no reason to restrict yourself to the sub-set of colours that are "standard" for Acorn; feel free to be a bit more creative, but remember: however delightful a colour you may specify, what actually appears in the browser's window will be limited to the nearest colour available in the particular screen mode in use; so for example, a sixteen colour desktop mode won't be able to show colours like brown, magenta, or pink!
You may notice that in all the examples below, the low nibble is always identical to the high nibble: this means that, in effect, the number of colours tabled are those in the 4096-colour (12-bit) set; and this ought to provide sufficient variety.
0 Black #000000 1 Red #FF0000 2 Green #00FF00 3 Yellow #FFFF00 4 Blue #0000FF 5 Magenta #FF00FF 6 Cyan #00FFFF 7 White #FFFFFF
0 White #FFFFFF 1 v lt Gy #DDDDDD 2 lt Grey #BBBBBB 3 m lt Gy #999999 4 m dk Gy #777777 5 dk Grey #555555 6 v dk Gy #333333 7 Black #000000 8 dk Blue #004499 9 Yellow #EEEE00 10 lt Green #00CC00 11 Red #DD0000 12 Cream #EEEEBB 13 dk Green #558800 14 Orange #FFBB00 15 lt Blue #00BBFF
Hue Colour Tint000 Tint064 Tint128 Tint192 0 Black #000000 #111111 #222222 #333333 1 dark Red #440000 #551111 #662222 #773333 2 med. Red #880000 #991111 #AA2222 #BB3333 3 full Red #CC0000 #DD1111 #EE2222 #FF3333 4 dark Green #004400 #115511 #226622 #337733 5 dark Yellow #444400 #555511 #666622 #777733 6 #884400 #995511 #AA6622 #BB7733 7 #CC4400 #DD5511 #EE6622 #FF7733 8 med. Green #008800 #119911 #22AA22 #33BB33 9 #448800 #559911 #66AA22 #77BB33 10 med. Yellow #888800 #999911 #AAAA22 #BBBB33 11 Orange #CC8800 #DD9911 #EEAA22 #FFBB33 12 full Green #00CC00 #11DD11 #22EE22 #33FF33 13 #44CC00 #55DD11 #66EE22 #77FF33 14 #88CC00 #99DD11 #AAEE22 #BBFF33 15 full Yellow #CCCC00 #DDDD11 #EEEE22 #FFFF33 16 dark Blue #000044 #111155 #222266 #333377 17 dark Magenta #440044 #551155 #662266 #773377 18 #880044 #991155 #AA2266 #BB3377 19 #CC0044 #DD1155 #EE2266 #FF3377 20 dark Cyan #004444 #115555 #226666 #337777 21 dark Grey #444444 #555555 #666666 #777777 22 #884444 #995555 #AA6666 #BB7777 23 #CC4444 #DD5555 #EE6666 #FF7777 24 #008844 #119955 #22AA66 #33BB77 25 #448844 #559955 #66AA66 #77BB77 26 #888844 #999955 #AAAA66 #BBBB77 27 #CC8844 #DD9955 #EEAA66 #FFBB77 28 #00CC44 #11DD55 #22EE66 #33FF77 29 #44CC44 #55DD55 #66EE66 #77FF77 30 #88CC44 #99DD55 #AAEE66 #BBFF77 31 #CCCC44 #DDDD55 #EEEE66 #FFFF77 32 med. Blue #000088 #111199 #2222AA #3333BB 33 #440088 #551199 #6622AA #7733BB 34 med. Magenta #880088 #991199 #AA22AA #BB33BB 35 #CC0088 #DD1199 #EE22AA #FF33BB 36 #004488 #115599 #2266AA #3377BB 37 #444488 #555599 #6666AA #7777BB 38 #884488 #995599 #AA66AA #BB77BB 39 #CC4488 #DD5599 #EE66AA #FF77BB 40 med. Cyan #008888 #119999 #22AAAA #33BBBB 41 #448888 #559999 #66AAAA #77BBBB 42 light Grey #888888 #999999 #AAAAAA #BBBBBB 43 Pink #CC8888 #DD9999 #EEAAAA #FFBBBB 44 #00CC88 #11DD99 #22EEAA #33FFBB 45 #44CC88 #55DD99 #66EEAA #77FFBB 46 #88CC88 #99DD99 #AAEEAA #BBFFBB 47 Cream #CCCC88 #DDDD99 #EEEEAA #FFFFBB 48 full Blue #0000CC #1111DD #2222EE #3333FF 49 #4400CC #5511DD #6622EE #7733FF 50 #8800CC #9911DD #AA22EE #BB33FF 51 full Magenta #CC00CC #DD11DD #EE22EE #FF33FF 52 #0044CC #1155DD #2266EE #3377FF 53 #4444CC #5555DD #6666EE #7777FF 54 #8844CC #9955DD #AA66EE #BB77FF 55 #CC44CC #DD55DD #EE66EE #FF77FF 56 #0088CC #1199DD #22AAEE #33BBFF 57 #4488CC #5599DD #66AAEE #77BBFF 58 #8888CC #9999DD #AAAAEE #BBBBFF 59 #CC88CC #DD99DD #EEAAEE #FFBBFF 60 full Cyan #00CCCC #11DDDD #22EEEE #33FFFF 61 #44CCCC #55DDDD #66EEEE #77FFFF 62 #88CCCC #99DDDD #AAEEEE #BBFFFF 63 White #CCCCCC #DDDDDD #EEEEEE #FFFFFF
Here are a sample sixtyfour of them: <--------- darker <--------- FULL --> desaturated (pastel) -->
------
Red 330000 660000 990000 CC0000 FF0000 FF3333 FF6666 FF9999 FFCCCC
Orange 663300 996600 FF9900 FFCC66
Yellow 333300 666600 999900 CCCC00 FFFF00 FFFF33 FFFF66 FFFF99 FFFFCC
Green 003300 006600 009900 00CC00 00FF00 33FF33 66FF66 99FF99 CCFFCC
Cyan 003333 006666 009999 00CCCC 00FFFF 33FFFF 66FFFF 99FFFF CCFFFF
Blue 000033 000066 000099 0000CC 0000FF 3333FF 6666FF 9999FF CCCCFF
Magenta 330033 660066 990099 CC00CC FF00FF FF33FF FF66FF FF99FF FFCCFF
------
Greys: Black 000000 333333 666666 Grey 999999 CCCCCC FFFFFF White

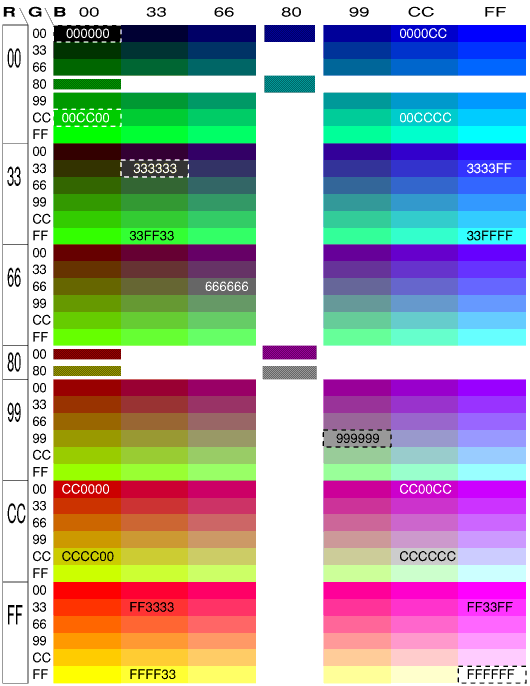

There is a full colour chart of all 216 available from
http://www.lynda.com/hexh.html or http://www.lynda.com/nhue.gifbut be warned: it's a 228 Kilobyte download!
<palett.zip>:colour/drw
#000000 Black #333333 dark Grey
#666666 med dk Grey #999999 med lt Grey
#CCCCCC light Grey #FFFFFF White
#CC0000 med dk Red #FF3333 bright Red
#CCCC00 khaki/mud #FFFF33 light Yellow
#00CC00 medium Green #33FF33 light Green
#00CCCC Turquoise #33FFFF lt Cyan/Azure
#0000CC med dk Blue #3333FF bright Blue
#CC00CC Purple #FF33FF bright Magenta
Here's a chart of those 18 (except for black and white:-- I assume you know what they look like ;-)
(oddly enough, the only ones of those that also correspond exactly to the
Wimp desktop colours are:
black, white, very dark grey, medium-light grey, and green).
W3C HTML3.2 lists the following sixteen (not very meaningful) colours
[my attempted interpretation in brackets]:
Maroon [brown] #800000 Red #FF0000 Olive [khaki] #808000 Yellow #FFFF00 Green [dkGrn] #008000 Lime [ltGrn] #00FF00 Teal [dkCyan] #008080 Aqua [Cyan] #00FFFF Navy [dkBlue] #000080 Blue #0000FF Purple [dkMag] #800080 Fuchsia [Mag] #FF00FF Black #000000 Gray (sic) #808080 Silver #C0C0C0 White #FFFFFF
White #FFFFFF Light Gray #C0C0C0 Gray #808080 Dark Gray #404040 Black #000000 Red #FF0000 Pink #FFAFAF Orange #FFC800 Yellow #FFFF00 Green #00FF00 Magenta #FF00FF Cyan #00FFFF Blue #0000FF aliceblue #F0F8FF antiquewhite #FAEBD7 aqua #00FF00 aquamarine #7FFFD4 azure #F0FFFF beige #F5F5DC bisque #E1E4C4 black #000000 blanchedalmond #FFEBCD blue #0000FF blueviolet #8A2BE2 brown #A5A52A burlywood #DEB887 cadetblue #5F9EA0 chartreuse #7FFF00 chocolate #D2691E coral #FF7F50 cornflowerblue #6495ED cornsilk #FFF8DC crimson #DC143C cyan #00FFFF darkblue #00008B darkcyan #008B8B darkgoldenrod #B8860B darkgray #A9A9A9 darkgreen #006464 darkkhaki #BDB76B darkmagenta #8B008B darkolivegreen #556B2F darkorange #FF8C00 darkorchid #9932CC darkred #8B0000 darksalmon #E9967A darkseagreen #8FBC8F darkslateblue #483D8B darkslategray #2F4F4F darkturquoise #00CED1 darkviolet #9400D3 deeppink #FF1493 deepskyblue #00BFFF dimgray #696969 dodgerblue #1E90FF firebrick #B22222 floralwhite #FFFAF0 forestgreen #228B22 fuchsia #FF00FF gainsboro #DCDCDC ghostwhite #F8F8FF gold #FFD700 goldenrod #DAA520 gray #808080 green #008000 greenyellow #ADFF2F honeydew #F0FFF0 hotpink #FF69B4 indianred #CD5C5C indigo #4B0082 ivory #FFFFF0 khaki #F0E68C lavender #E6E6FA lavenderblush #FFF0F5 lawngreen #7CFC00 lemonchiffon #FFFACD lightblue #ADD8E6 lightcoral #F08080 lightcyan #E0FFFF lightgoldenrodyellow #A6FAFA lightgreen #90EE90 lightgrey #D3D3D3 lightpink #FFB6C1 lightsalmon #FFA07A lightseagreen #20B2AA lightskyblue #87CEFA lightslategray #778899 lightsteelblue #B0C4DE lightyellow #FFFFE0 lime #00FF00 limegreen #32CD32 linen #CBFAF0 magenta #FF00FF maroon #800000 mediumaquamarine #66CDAA mediumblue #0000CD mediumorchid #BA55D3 mediumpurple #9370DB mediumseagreen #3CB371 mediumslateblue #7B68EE mediumspringgreen #00FA9A mediumturquoise #48D1CC mediumvioletred #C71585 midnightblue #191970 mintcream #F5FFFA mistyrose #FFE4E1 moccasin #FFE4B5 navajowhite #FFDEAD navy #000080 oldlace #FDF5E6 olive #808000 olivedrab #6B8E23 orange #FFA500 orangered #FF4599 orchid #DA70D6 palegoldenrod #EEE8AA palegreen #98FB98 paleturquoise #AFEEEE palevioletred #DB7993 papayawhip #FFEFD5 peachpuff #FFDAB9 peru #CD853F pink #FFC0CB plum #DDA0DD powderblue #B0E0E6 purple #800080 red #FF0000 rosybrown #BC8F8F royalblue #4169E1 saddlebrown #8B4513 salmon #FA8072 sandybrown #F4A460 seagreen #2E8B57 seashell #FFF5EE sienna #A0522D silver #C0C0C0 skyblue #87CEEB slateblue #6A5ACD slategray #708090 snow #FFFAFA springgreen #00FF7F steelblue #4682B4 tan #D2B48C teal #008080 thistle #D8BFD8 tomato #FF6347 turquoise #3EE0D0 violet #EE82EE wheat #F5DEB3 white #FFFFFF whitesmoke #F5F5F5 yellow #FFFF00 yellowgreen #9ACD32Note that I would not recommend for one moment that you actually USE any of these damfool names! The process seems to be:
Most colours print significantly darker than they appear on screen, so you could try making them a touch brighter (especially green: go for a bright green on-screen, which will print as a more medium green).
The conversion from Red/Blue/Green values to Cyan/Magenta/Yellow/blacK colours can be done with mathematical precision, yet still not quite print as expected:
A pure blue (eg #0000FF) on screen will print with a distinct purple tinge; you can get round this by adding some green, which both conteracts the purple and makes it less dark.
Avoid colours which are not quite full intensity (eg #EEEE00 for yellow): this will get printed with untidy spatterings of black.
