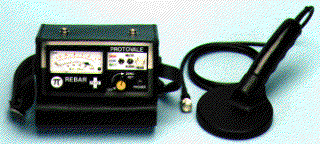

The Rebar Plus rebar locator

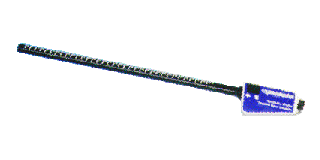

Locate rebars quickly and accurately Drilling through rebars can be dangerous and expensive, but trying to avoid them can be time-consuming. Anybody working with reinforced concrete needs to know quickly and exactly where the rebars are to avoid cutting through load bearing rebars, leaving unsightly unnecessary holes, damaging the drill or weakening the reinforced structure. Protovale's Rebar Plus uses our unique technology to locate rebars or welded mesh fabric precisely and reliably, and since it is not affected by moisture, temperature changes or electrical interference, the Rebar Plus is extremely stable even under the most arduous site conditions. Fast to use The loud audible signal and a clear analogue meter enables you to scan quickly and accurately. Easy to use Only one control knob and two switches Rugged yet lightweight Work all day without tiring. Versatile Although it was not designed as a cover meter, the Rebar Plus can also estimate the depth of cover. It can also be used with the Protovale Borehole Probe (see below) for location of tendon ducts or during the installation of discrete anodes. On one project, using the Rebar Plus with borehole probe attachment, we drilled 3,500 holes and had only three misses. It's a quality instrument.   In my experience, nothing on the market even comes close. Chuck Queen, Project Manager, Nielsen Dillingham Builders, Inc. USA

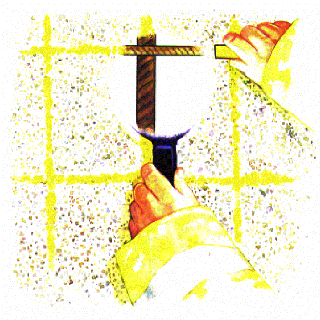

Cut Costs --  not rebars Map out rebars;  find 'safe spots' before drilling The narrow controlled search field of the Rebar Plus easily identifies vertical and horizontal bars allowing a safe spot to be marked prior to drilling even when used near metal window frames or scaffolding.           The Protovale Advantage All Protovale instruments are designed by the world's leading experts in the field of pulse induction technology.  They use a unique system which is unaffected by moisture or temperature, making Protovale instruments remarkably stable in all site conditions.       Please contact us now for more information or a free demonstration   Protovale Oxford Ltd, Rectory Lane Trading Estate Kingston Bagpuize, Abingdon OX13 5AS, England Tel: +44 (0) 1865 821277, Fax: +44 (0) 1865 820573 email: info@protovale.co.uk

The Rebar Plus rebar locator

Rebar Plus:  Technical Specification Quality colour-coded meter scaled for the precise location of rebars;  an indication of the depth of concrete cover;  and the battery state High-impact ABS control unit.  Strong epoxy resin search head Built in loud speaker for audible bar location Headphone socket:  3.5mm mono jack Single on/off and sensitivity control knob Control panel switch for moving between two ranges:  low 1 to 8cm and high 5 to 14cm;  and an indication of battery state Control panel switch for audio tone Easily accessible battery compartment Strong leather case with shoulder strap High grade TNC plug search head connector Compatible with Protovale Borehole Probe and 6S search head Detection ranges (single bars):   8mm diameter   12cm 16mm diameter   14cm 32mm diameter   16cm Resolution of parallel bars 60mm pitch at up to 35mm cover 75mm pitch at up to 50mm cover 150mm pitch at up to 85mm cover Welded fabric of 6mm bars on 200mm centres can be resolved at up to 120mm cover.       Cover Measurement While the Rebar Plus was not designed as a cover meter, it does give a good indication of depth of cover for medium sized bars of 12 to 20mm diameter on a scale marked in centimetre and half centimetre divisions.  For precision measurement of cover, use Protovale's CM9 or CM52 CoverMaster.

Kit includes Control unit in leather case 4S search head User manual Optional Extras: 6S search head increases detection range to 200mm for large bars. Borehole Probe for locating tendons or deeper layers of bars. Dimensions: Control unit in case: 165 x 120 x 90mm, 680g Standard 4S search head: 108mm face diameter, 350g Batteries: 4AA size (LR6) (not supplied) Mn1500 alkaline recommended, or NiCad can be used. Total shipping weight including search head 1.5kg Optional 6S search head: 153mm face diameter, 170g Borehole Probe 515mm long, 130g   Also available: The CoverMaster® CM52 and CM9,  full-specification cover meters for a precise measurement of concrete cover. Imp Rebar Locator:  Simple instrument with a single range, omitting the depth scale meter, for less demanding applications.       Full support Protovale offers its users support by telephone, +44 (0) 1865 82127, fax  +44 (0) 1865 820573 and email support@protovale.co.uk. 24-hour support on the web Protovale's web site also provides updated product summaries, simple technical support and abstracts of technical papers on key issues relating to our instruments and latest news flashes. Visit us on www.protovale.co.uk. Full one year parts and labour warranty
