The Protovale Borehole Probe
Tendon Duct Locator

A new breakthrough for the construction industry

Drilling deeply into concrete can be a risky business. Hitting rebars, pre-stressing or post-tensioned tendons is not only costly, it's dangerous. But until now, locating tendon ducts beneath layers of reinforcement has been extremely difficult and imprecise.

The new Protovale Probe is the first instrument that lets you detect rebars or tendon ducts behind layer after layer of rebar mesh. Unlike other detectors, the Probe lets you search both sideways and forwards while also measuring the distance of the target from the Probe tip. The result is pinpoint accuracy with a minimum number of bore holes.

The Probe also helps position anodes when installing cathodic protection.

Reduces unnecessary boreholes

Significantly reduce abortive bore-hole drilling that costs time and money.

Drill faster

Drill with confidence knowing you're safe from hitting metal.

Protect drills and steel reinforcement

The Probe warns you before you hit metal, reducing damage to both drills and reinforcement.

Install anodes accurately

Use the Probe to install anodes away from steel reinforcement.

Rugged enough for the toughest sites

Sturdy construction and calibrated fibreglass shaft to measure depth drilled.

Field Proven

Please contact us for references

Available as an accessory

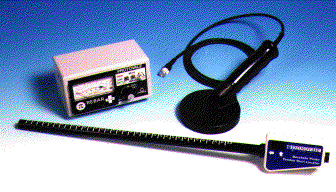

The Probe is used in conjunction with either the Rebar Plus, CoverMaster CM52 or CM9 cover meters -- the best detection instruments available to the construction industry.

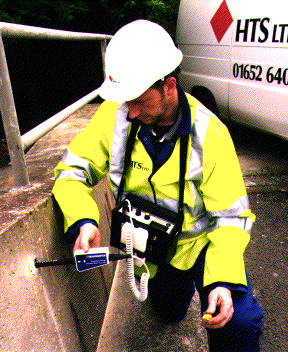

[Probe with CM52]

The Protovale Advantage

All Protovale instruments are designed by the world's leading experts in the field of pulse induction technology. They use a unique system which is unaffected by moisture or temperature, making Protovale instruments remarkably stable in all site conditions.

Please contact us now for more information or a free demonstration

Lightweight custom made fibre-glass shaft to ensure necessary strength
Ruler markings on shaft to measure distance
Bayonet connector for quick exchange between probe and heads from compatible instruments
Rocker switch to control dual sensor for forwards or sideways viewing
Connector to match head lead of CM5, CM52 or CM9
Optional connecting lead to Rebar Plus

Approximate detection Ranges:

Using Rebar Plus as host instrument:

70mm diameter tendon duct:
        sideways viewing  80mm
        forwards viewing 110mm
20mm diameter rebar
        sideways viewing  55mm
        forwards viewing  75mm

Using CM52 as host instrument

70mm diameter tendon duct:
        sideways viewing  45mm
        forwards viewing  60mm
20mm diameter rebar
        sideways viewing  30mm
        forwards viewing  40mm

Using CM9 as host instrument

70mm diameter tendon duct:
        sideways viewing  60mm
        forwards viewing  90mm
20mm diameter rebar
        sideways viewing  45mm
        forwards viewing  60mm

Accuracy          ±1cm typical

Compatibility:

With Rebar Plus    using special lead
With CM52          directly connected
With CM9        if modified for Probe
With CM5  if modified for Midget head
With Imp Rebar     using special lead

Dimensions:

Overall length                  515mm
Reach                           405mm
Shaft markings in centimetres to 34cm
Shaft diameter                   16mm
Weight                          130g
Optimum hole diameter            20mm

Full support

Protovale offers its users support by
telephone, +44 (0) 1865 82127,
fax +44 (0) 1865 820573
and email support@protovale.co.uk.

24-hour support on the web

Protovale's web site also provides updated product summaries, simple technical support and abstracts of technical papers on key issues relating to our instruments and latest news flashes.
Visit us on www.protovale.co.uk.

Full one year parts and labour warranty

Also available: The Rebar Plus, and CM52 and CM9 CoverMasters®, rebar locators and full-specification cover meters.
